Murphy Fine Arts Center

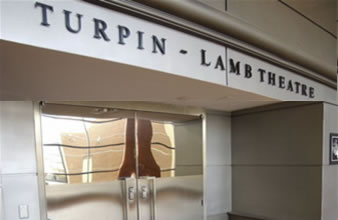

Turpin Lamb Theatre

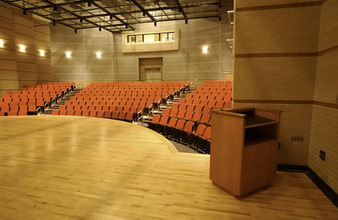

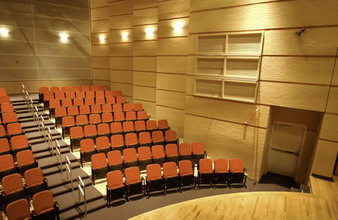

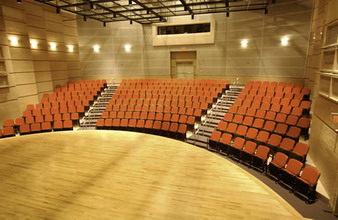

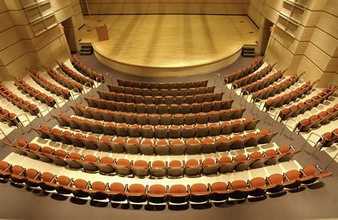

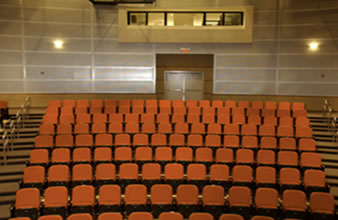

Named to honor two former Morgan professors: Dr. Waters E. Turpin and Arthur C. Lamb the contemporary Turpin-Lamb Theatre is equipped to stage major theatrical productions in a more intimate environment.

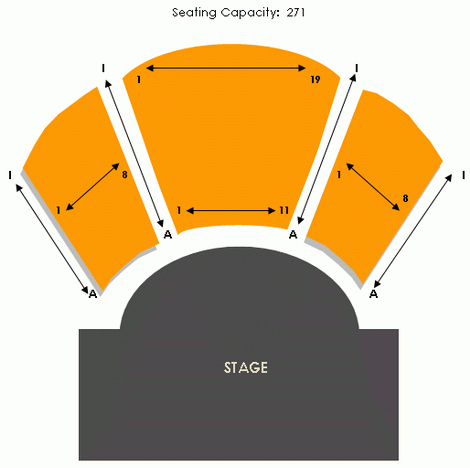

Seating Capacity: 271
View Rates | View Tech Specs (PDF)
STAGE SPECIFICATIONS
| Location | Specs |
|---|---|
|
Location
Proscenium Opening |
Specs
49’ – 0” |
|
Location
Proscenium Height |
Specs
19’ – 6” |
|
Location
Thrust to Back Ball |
Specs
42’ – 0” |
|
Location
Plaster Line to Back Wall |
Specs
29’ – 0” |
|
Location
Curtain Line to Back Wall |
Specs
27’ – 0” |
|
Location
Curtain Line to Thrust |
Specs
15’ – 0” |
|
Location
Center to Stage Right |
Specs
29’ – 0” |
|
Location
Center to Stage Left |
Specs
29’ – 0” |
|
Location
Grid Height |
Specs
23’ – 6” |
|
Location
House Floor to Stage |
Specs
3’ – 0” |
SOUND
| EQUIPMENT | QTY |
|---|---|
|
EQUIPMENT
FOH A: Allen & Heath Avantis - Mixing console |
QTY
1 |
|
EQUIPMENT
FOH B: Allen & Heath DX32 Stage Box (24 inputs/8 outputs) |
QTY
1 |
|
EQUIPMENT
FOH C: Audinate Dante 96K Card |
QTY
1 |
|
EQUIPMENT
FOH D: Netgear Dante Switches |
QTY
2 |
|
EQUIPMENT
Monitor A: Mon mixes from FOH |
QTY
8 |
|
EQUIPMENT
Monitor B: L’Acoustics 112P Stage Monitors |
QTY
4 |
|
EQUIPMENT
Amps A: L’Acoustics LA4X |
QTY
2 |
|
EQUIPMENT
Playbacks rack A: Apple iMac with Qlab 5 |
QTY
1 |
|
EQUIPMENT
Playbacks rack B: Dennon Blue Ray player/recorder |
QTY
1 |
|
EQUIPMENT
Playbacks rack C: Barco Clickshare |
QTY
1 |
|
EQUIPMENT
Speaker Boxes-L’Acoustics A: L’Acoustics X12 |
QTY
6 |
|
EQUIPMENT
Speaker Boxes-L’Acoustics B: L’Acoustics 5XT |
QTY
2 |
|
EQUIPMENT
Microphones A: Shure ULXD4Q |
QTY
2 |
|
EQUIPMENT
Microphones B: Shure ULXD2 w/Beta SM58 |
QTY
8 |
|
EQUIPMENT
Microphones C: Shure ULXD1 w/MX 150B/C |
QTY
8 |
|
EQUIPMENT
Microphones D: DPA 4099 Piano Microphone Set |
QTY
1 |
|
EQUIPMENT
Microphones E: DPA 4099 Piano Microphone Set |
QTY
1 |
|
EQUIPMENT
Microphones F: Shure Beta 87 |
QTY
2 |
|
EQUIPMENT
Microphones G: Shure Beta 58 |
QTY
2 |
|
EQUIPMENT
Microphones H: Shure MX418 Gooseneck Podium Microphone |
QTY
1 |
|
EQUIPMENT
Hearing Assistance A: Sennheiser S120 – Hearing Transmitter |
QTY
1 |
|
EQUIPMENT
Video A: Christie D16WU-HS DLP Projector |
QTY
1 |
|
EQUIPMENT
Video B: Vaddio AV Bridge MatrixMIX |
QTY
1 |
|
EQUIPMENT
Video C: Vaddio Switcher |
QTY
1 |
|
EQUIPMENT
Video D: Panasonic 4K 30x Robotic Camera (Center) |
QTY
1 |
|
EQUIPMENT
Video E: Windows 10 Laptop w/WSN Streaming Software |
QTY
1 |
|
EQUIPMENT
Power Distribution: 1 / 200-amp Three phase |
QTY |
DRAPERIES
Grand Drape
26 oz. Velour (maroon) 100% full, 2 @ 28’h x 36’w – w/2’ Center Total Overlap
Legs and borders
5 (set-pair) Legs - 26 oz. Velour (black), Flat, 28’h x 12’w
5 Borders - 26 oz. Velour (black), Flat, 8’h x 86’w
Cyclorama
CBS grey lino, Flat, 30’h x 70’w
Cleacom Intercom System
A: 4x – stations 2 ch.
Sound Pressure Levels
Due to the potential volume levels available with our FOH system that may come into the building with a show, MFAC has adopted a very strict policy regarding SPL. The following maximum db level restrictions have been set for the protection of our audience members, crew, and artists. At no time shall the maximum A-weighted SPL ever reach above 110db at the Center of the House (COH) in row “EE.” MFAC reserves the right to direct their Head Audio Engineer or his designate to reduce system levels to remain within acceptable SPLs.
| A-weight SPL @ COH | Maximum Time |
| 95db 97db 100db 102db |
4 hours 2 hours 1 hour 30 minutes |
Audio Challenges in the Turpin-Lamb Theatre
The Turpin-Lamb Theatre was designed primarily for vocal and instrumental naturally driven acoustic events.
PLEASE NOTE: Due to the acoustic design of the front of the house, we strongly discourage the placing of speaker stacks on the stage, as excessive echo slap-back occurs, severely hindering intelligibility.
LIGHTING
Control Console
ETC Element 500 channels 40 Submasters
Dimmers and Control
90 (2.4k) dimmers
3 (6k) dimmers
Power Distribution
1 / 400-amp Three phase
1 / 200-amp Three phase

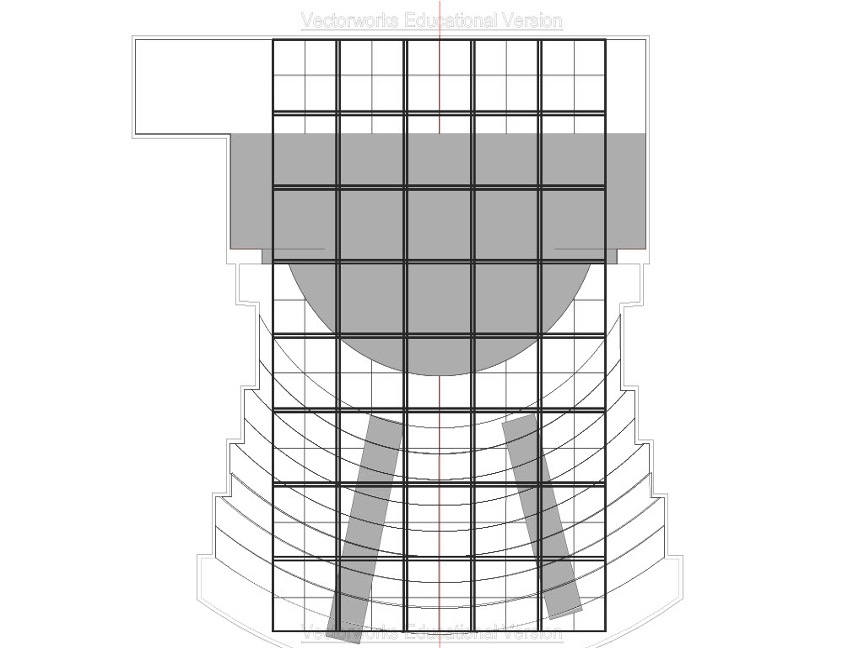

Turpin-Lamb Lighting Plot
DRAPERIES
Grand Drape
20/21 OZ IFR CRESCENT POLY VELOUR (red), 50% Full, (2) Panels 23'-5"H x 23'-0"W EACH
Legs
3 (set-pair) 20/21 OZ IFR CRESCENT POLY VELOUR (black) 23'-5"H x 11'-6.5"W EACH
Cyclorama
IFR POLY MUSLIN, SEAMLESS, WHITE, 23'-5"H x 43'-1"W
Rear curtains
20/21 OZ IFR CRESCENT POLY VELOUR (Black), 50% Full, (2) Panels 23'-5"H x 23'-0"W EACH
Lighting Fixture Inventory
The Turpin-Lamb Theatre is a “stripped” venue with a very limited lighting inventory with
(20) 750-watt 36-degree lekos.
(15) 500-watt ETC pars.
(5) 500-watt fresnel
